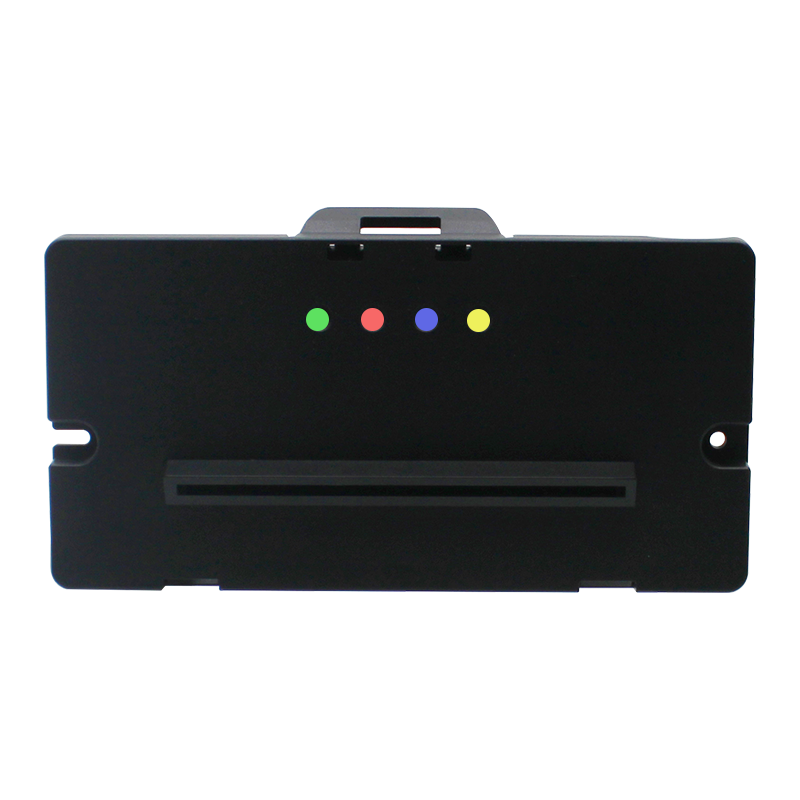

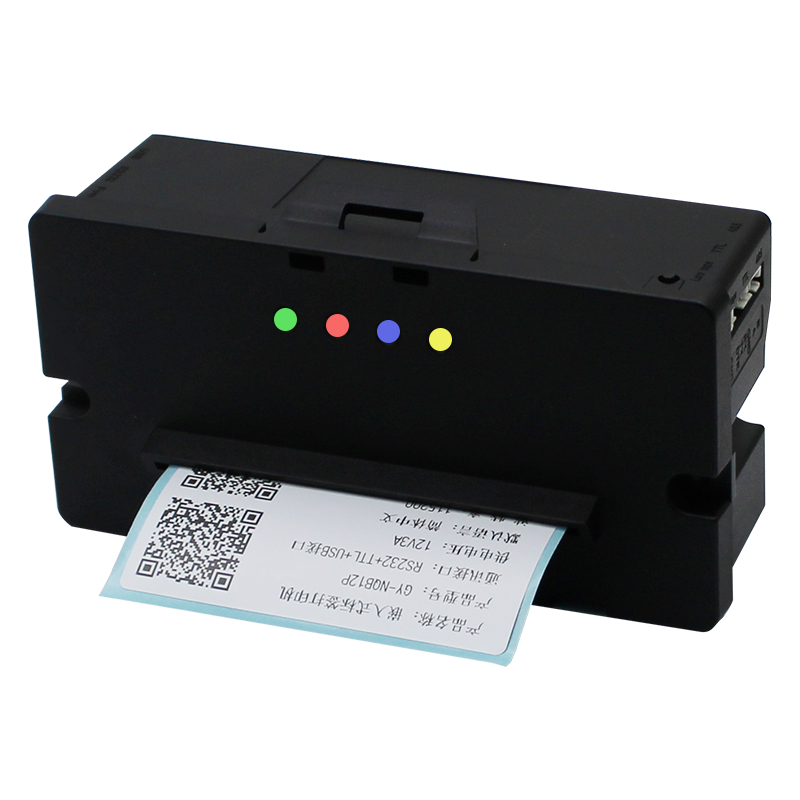

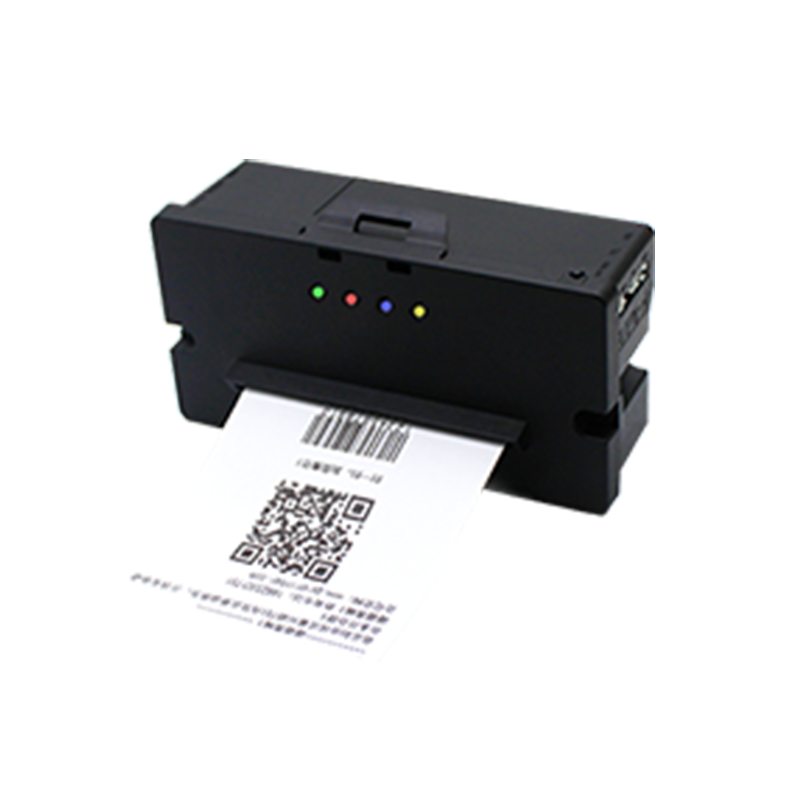

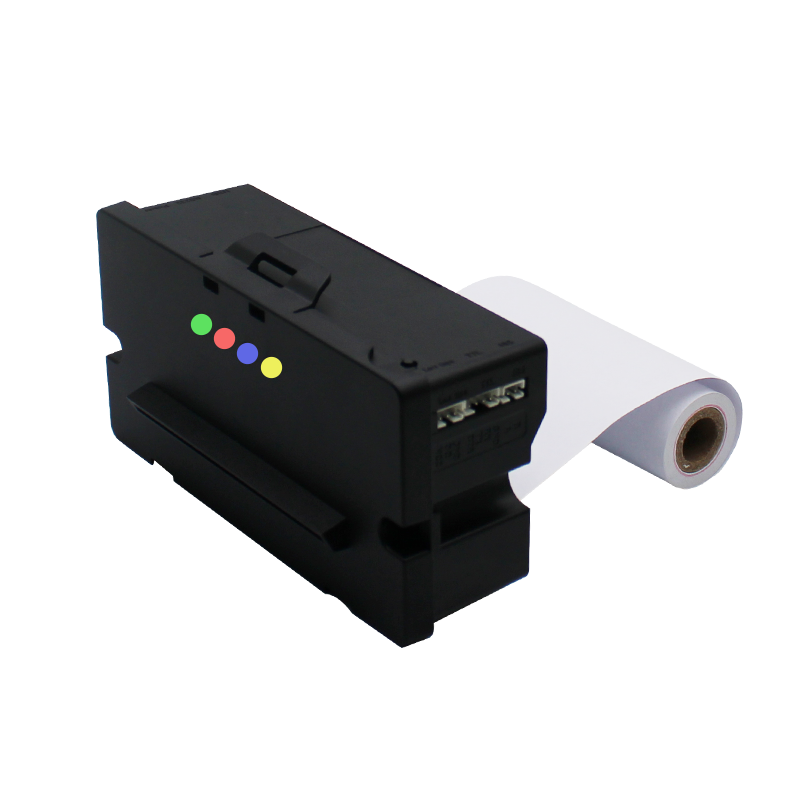

80mm embedded thermal printer

An embedded printer specifically designed for unmanned self-service terminals

An embedded printer specifically designed for unmanned self-service terminals,The tag/receipt mode can be switched,150MM/S high-speed printing,Can be developed again,DIY paper holder that can be designed with suitable equipment space,

Product Name：80MM Embedded Thermal Printer I Automatic Paper Cutting

Product model：GY-NP324L

Printing type: bill/label switchable mode

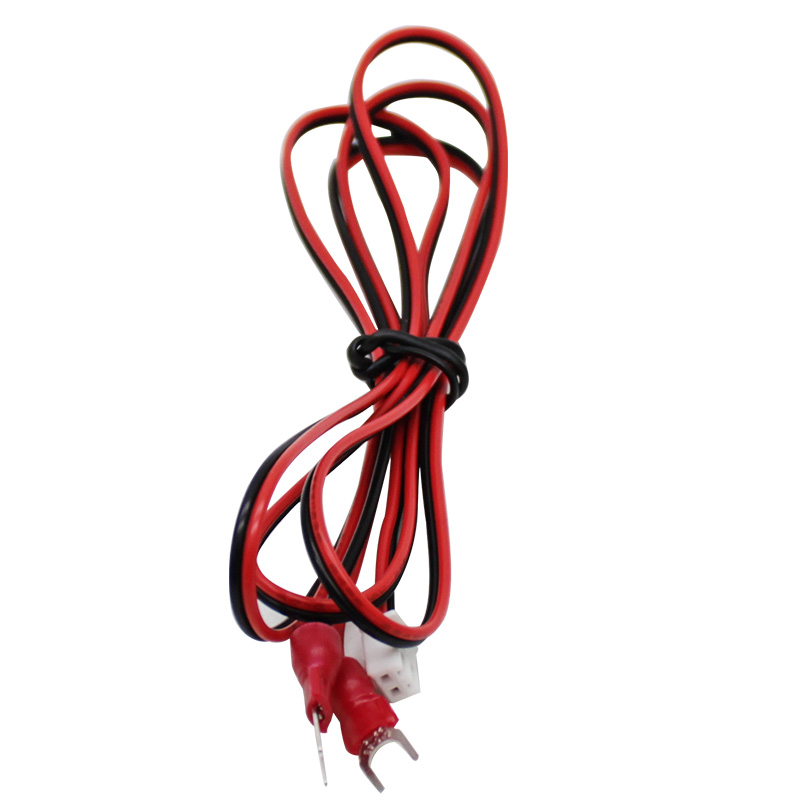

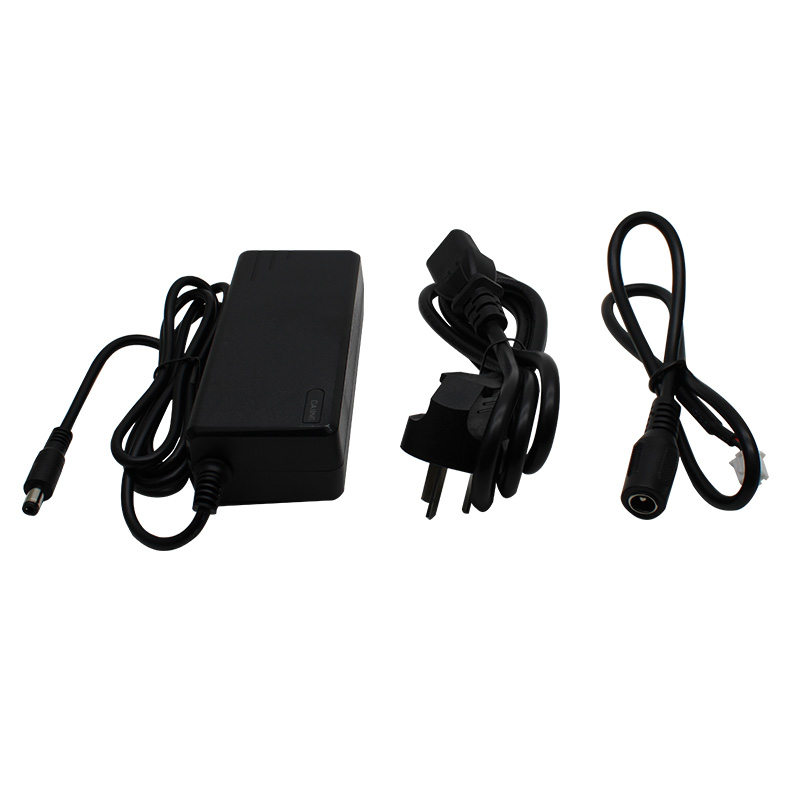

Specification parameters: 24V voltage supply

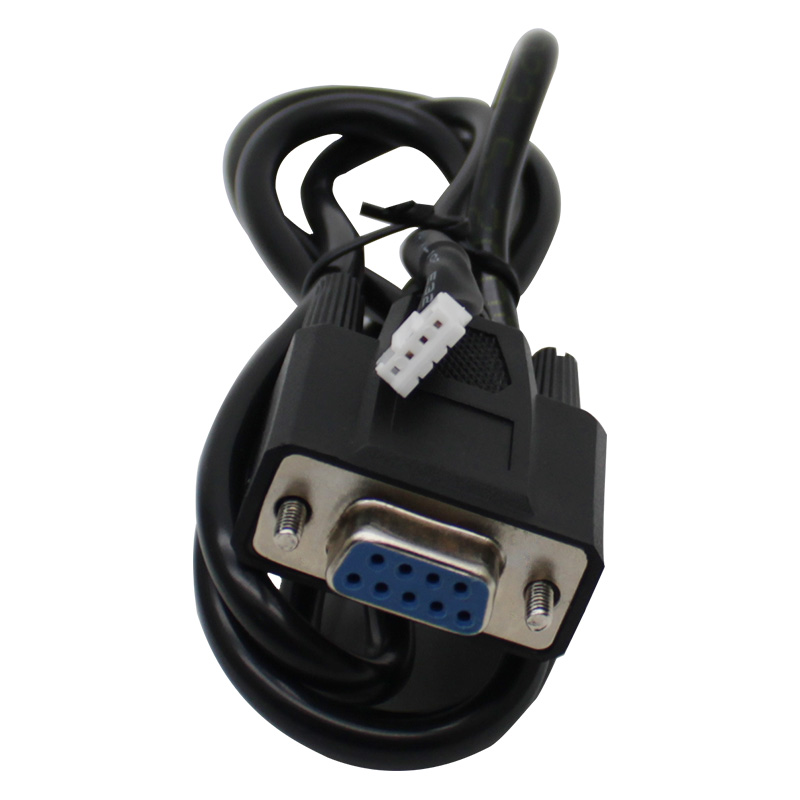

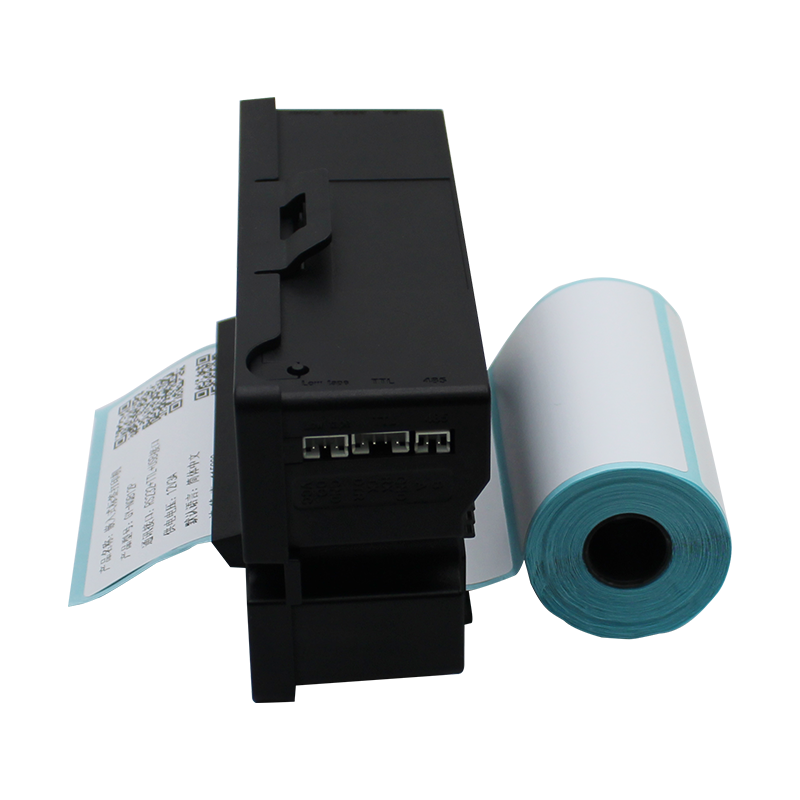

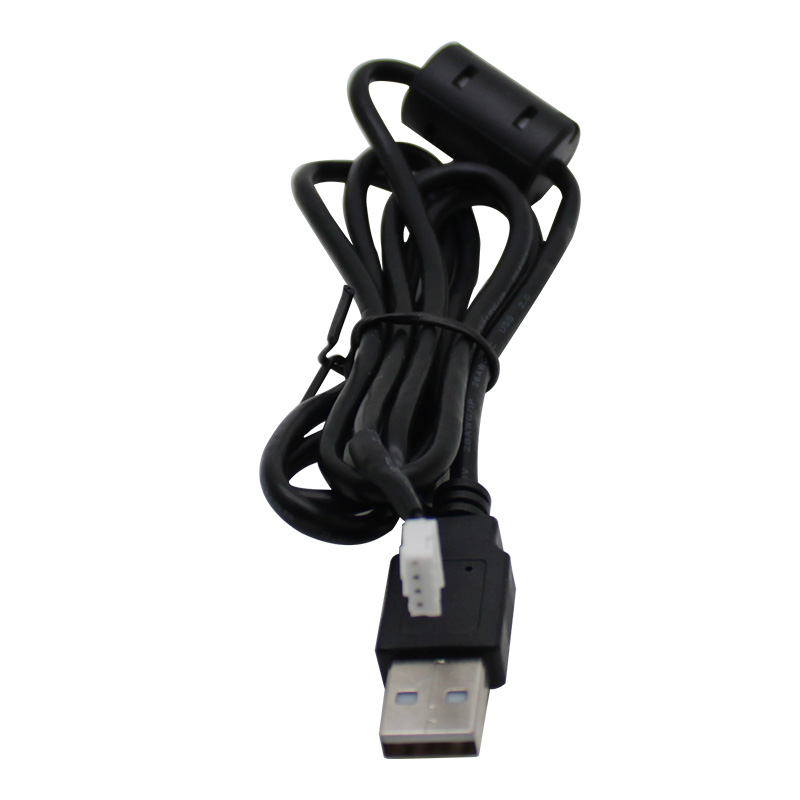

Communication interface: RS232+TTL+USB+485 interface

Exterior dimensions: 136.3 * 92.3 * 70.1MM

Appearance color: Black

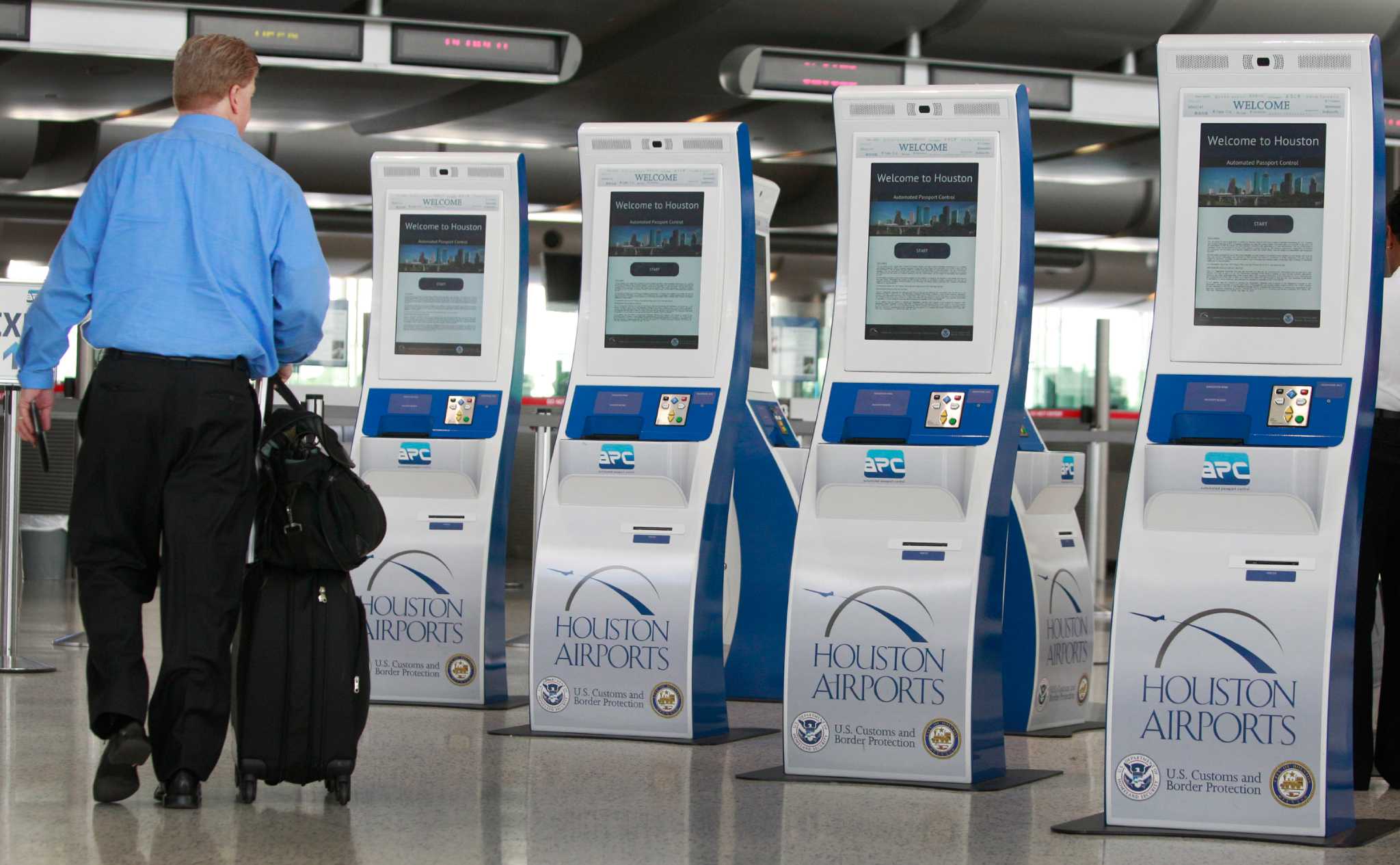

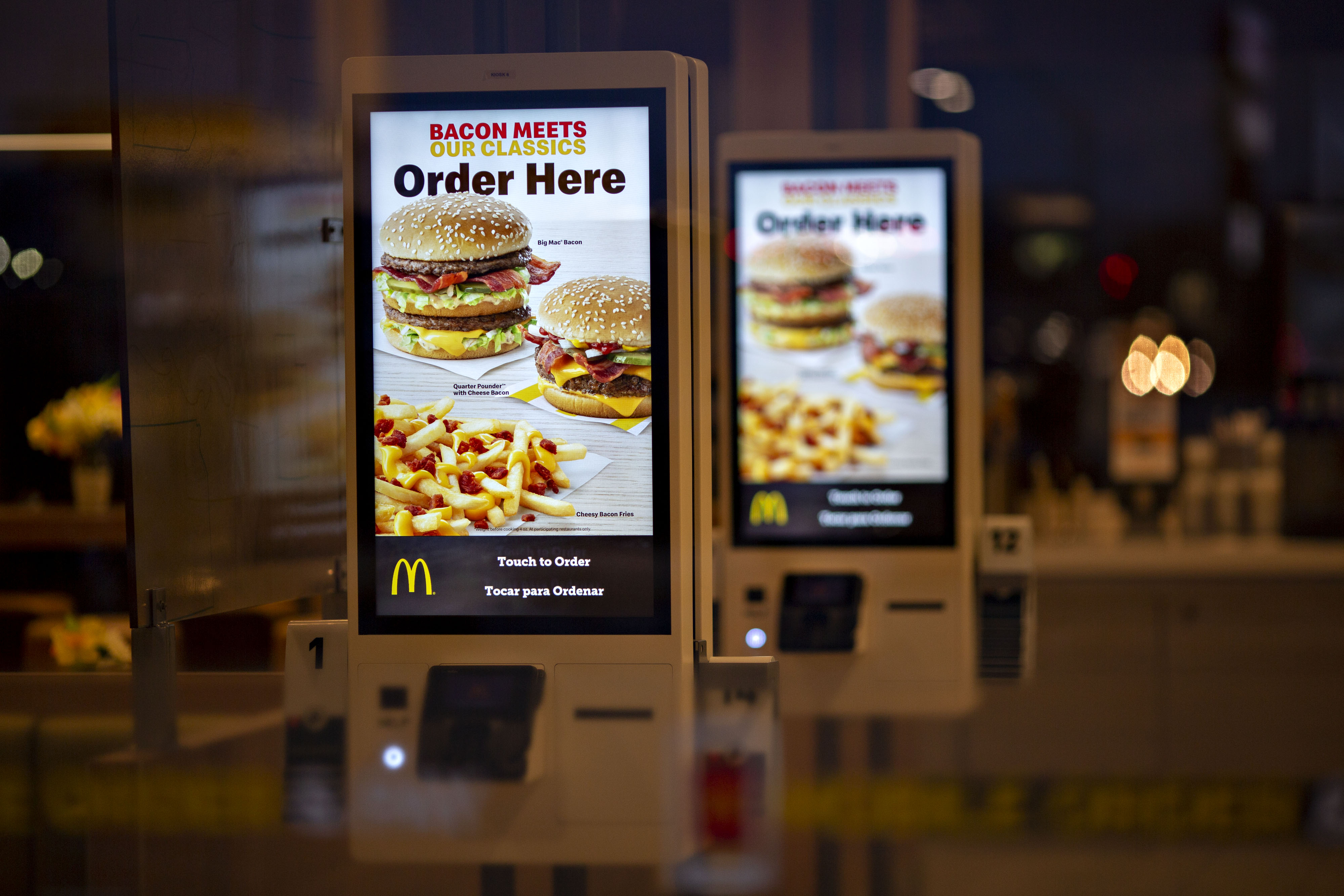

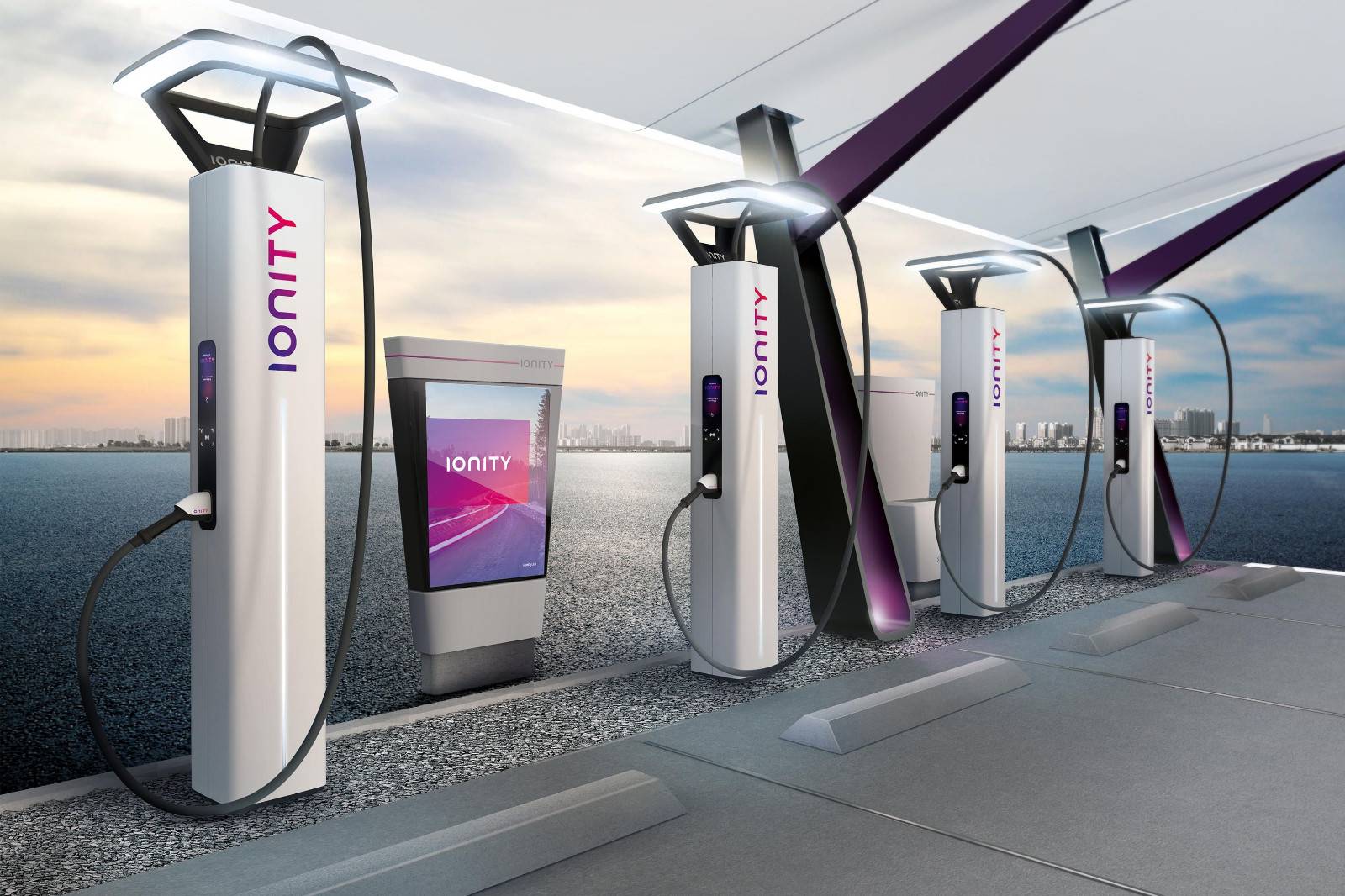

Usage scenario: Unmanned self-service equipment

Printing speed: 150MM/S

Product Usage: Thermal label/ticket printing in various fields

Product features: Support status reply function, automatic paper cutting (half cut/full cut), adjustable 40-80MM label width, rear paper structure design (automatic feeding)

Secondary development: supports control printing for Linux, Android, PLC, Raspberry Pi, Windows, microcontrollers, etc

: GY-NP324L

An embedded printer specifically designed for unmanned self-service terminals，Tags/receipts can be switched，Automatic paper suction, no paper jam. Intelligent temperature control, no burnt smell when printing.

: GY-NP324L

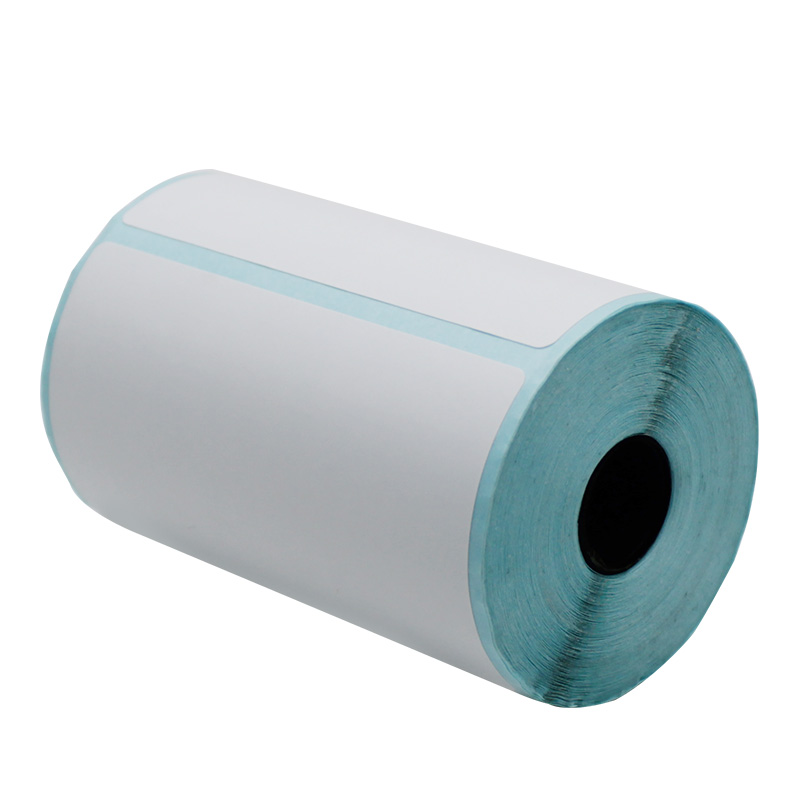

Aluminum profile heat sink.New upgrade, previous products did not have heat sinks, so the printer caused the temperature of the motor to continuously rise during a large number of printing processes. Due to the lack of a heat source, the temperature was transmitted to the gears. Over time, the high temperature caused the gears to undergo thermal deformation, resulting in inability to print or even the printer head being scrapped. With it, the temperature can be quickly transmitted to the air to achieve heat dissipation. This not only solves the problem of high temperature generated by the motor during continuous printing of the printer, but also extends the service life of the printer.Printing of various specifications of labelsThe label width can be adjusted from 40-79mm, and the label height can be printed from 15-160mm, meeting the usage scenarios of various industries and fields

Parameter

Basic information
Product Name	80MM Embedded Thermal Printer I Automatic Paper Cutting
Product model	GY-NP324L
Printing type	bill/label switchable mode
Specification parameters	24V voltage supply
Communication interface	RS232+TTL+USB+485 interface
Exterior dimensions	136.3 * 92.3 * 70.1MM
Appearance color	Black
Usage scenario	Unmanned self-service equipment
Printing speed	150MM/S
Product Usage	Thermal label/ticket printing in various fields
Product features	Support status reply function, automatic paper cutting (half cut/full cut), adjustable 40-80MM label width, rear paper structure design (automatic feeding)
Secondary development	supports control printing for Linux, Android, PLC, Raspberry Pi, Windows, microcontrollers, etc
