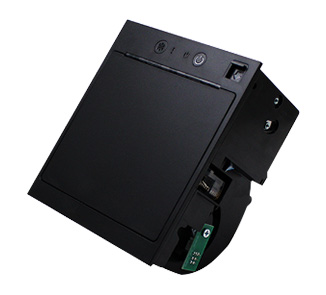

GY-TC3612

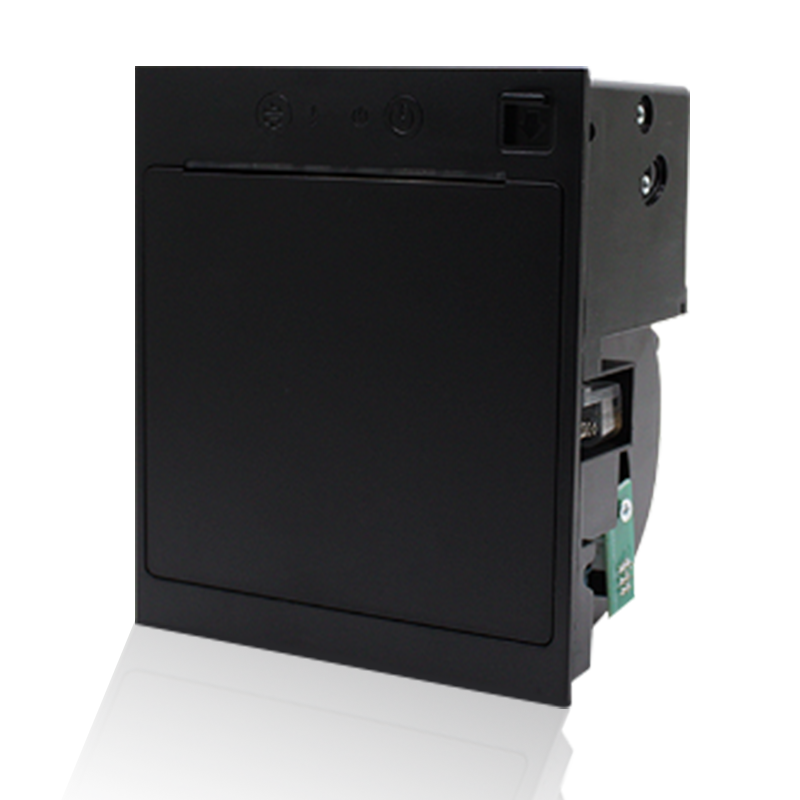

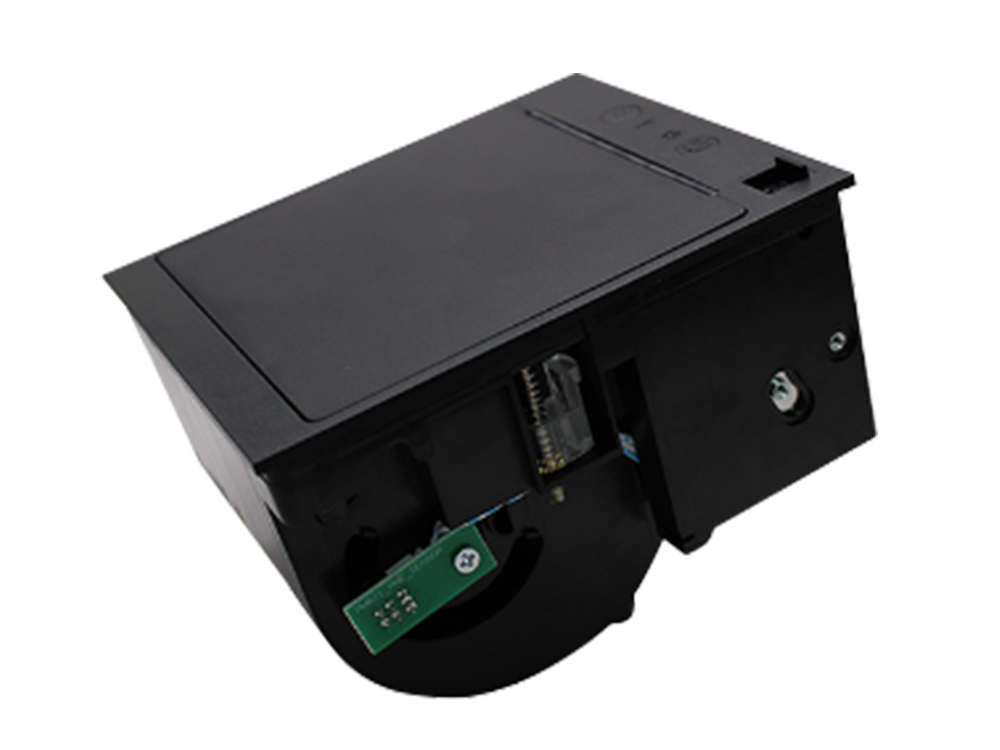

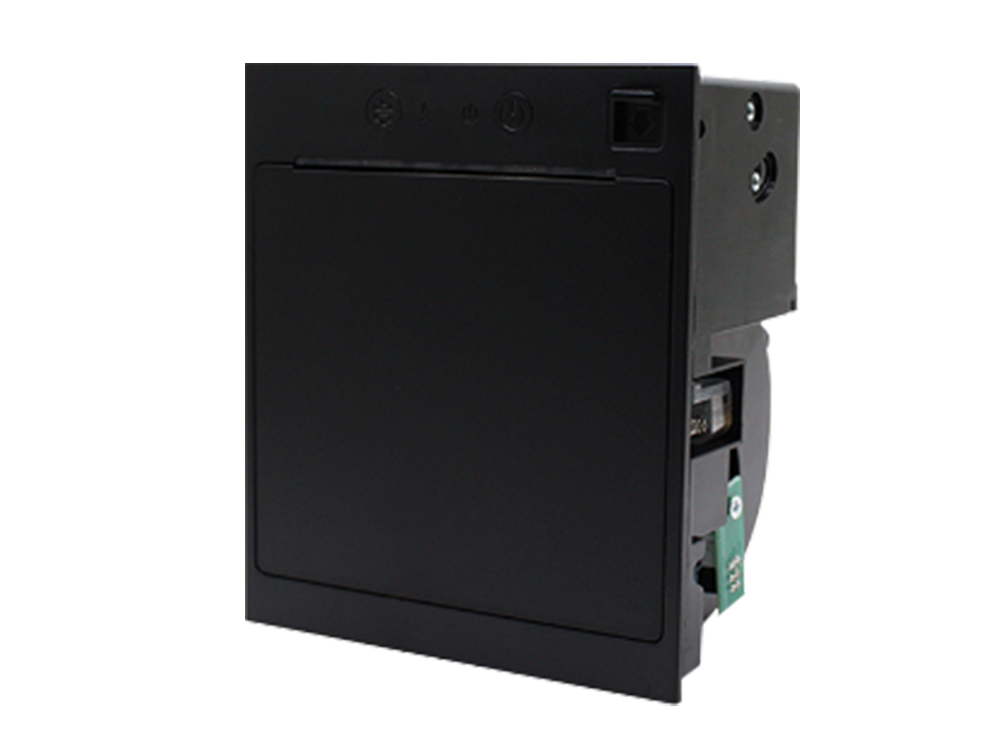

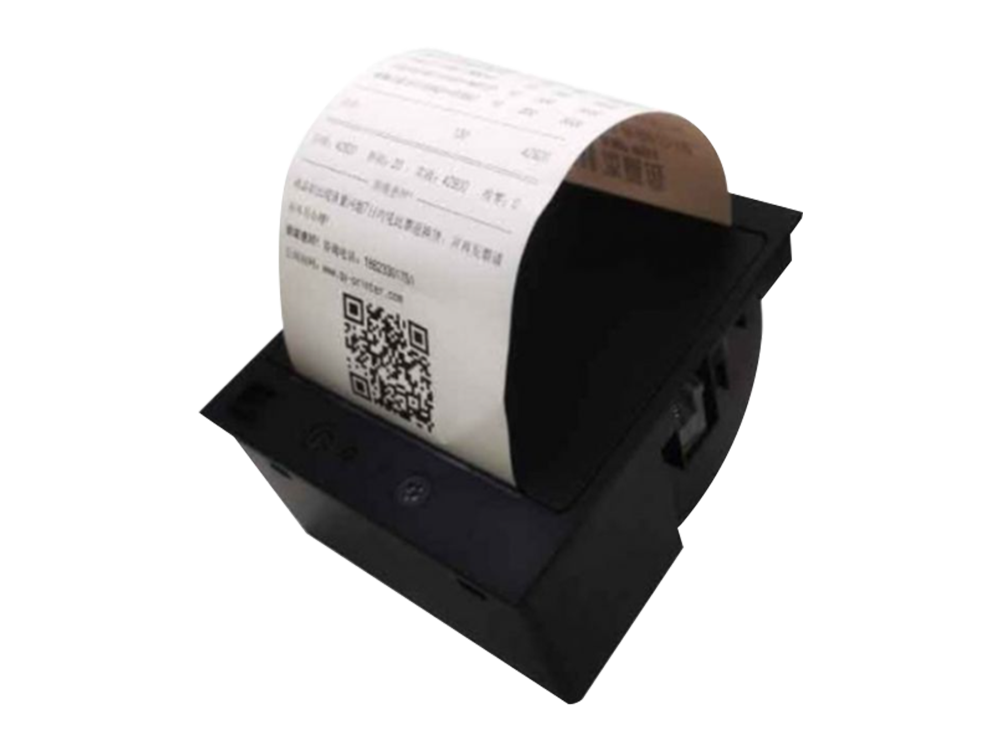

80MM embedded thermal printer I automatic paper cutting

This is an 80MM embedded thermal printer with automatic paper cutting, suitable for scenarios such as unmanned self-service devices. Its appearance adopts a minimalist design without losing its beauty. The minimalist design makes it easy for you to change paper and saves time. It does not require carbon tape, color tape, ink, and thermal technology printing. It has a dual mode of label and receipt, which can meet most of your daily needs.

Printing type：ticket/label switchable mode

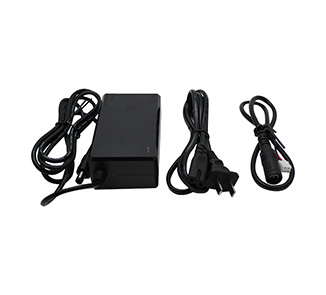

Specification parameters:12V2.5A power supply

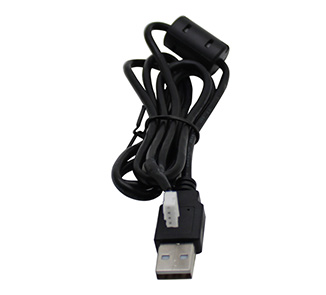

Communication interface：RS232+USB interface

Appearance size:132*114.8*86.4MM

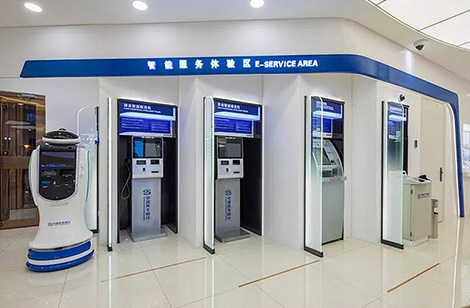

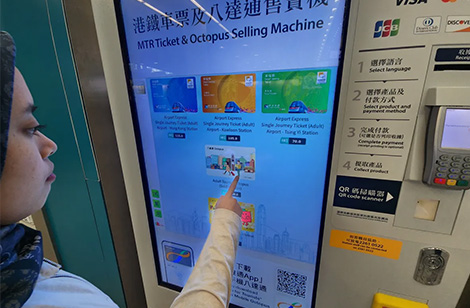

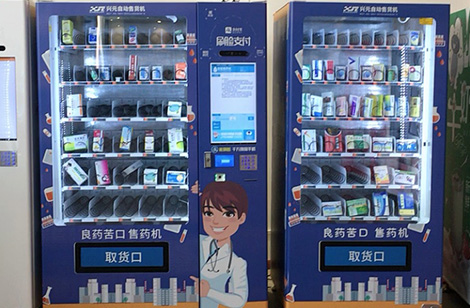

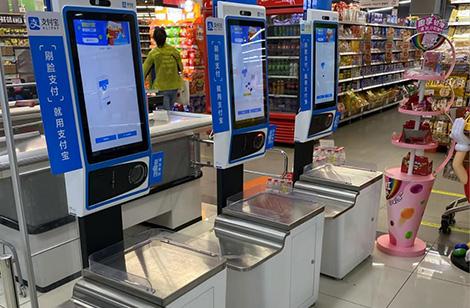

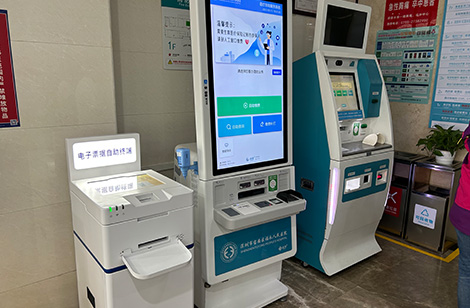

Usage scenario: Unattended self-service devices

Product features：Support status reply function, automatic paper cutting (half cut/full cut), 80MM large paper bin, adjustable width of 43-80MM labels, and easy to pack paper structure design

Secondary development：Supports controlling printing on Linux, Android, PLC, Raspberry Pi, Windows, microcontrollers, and more

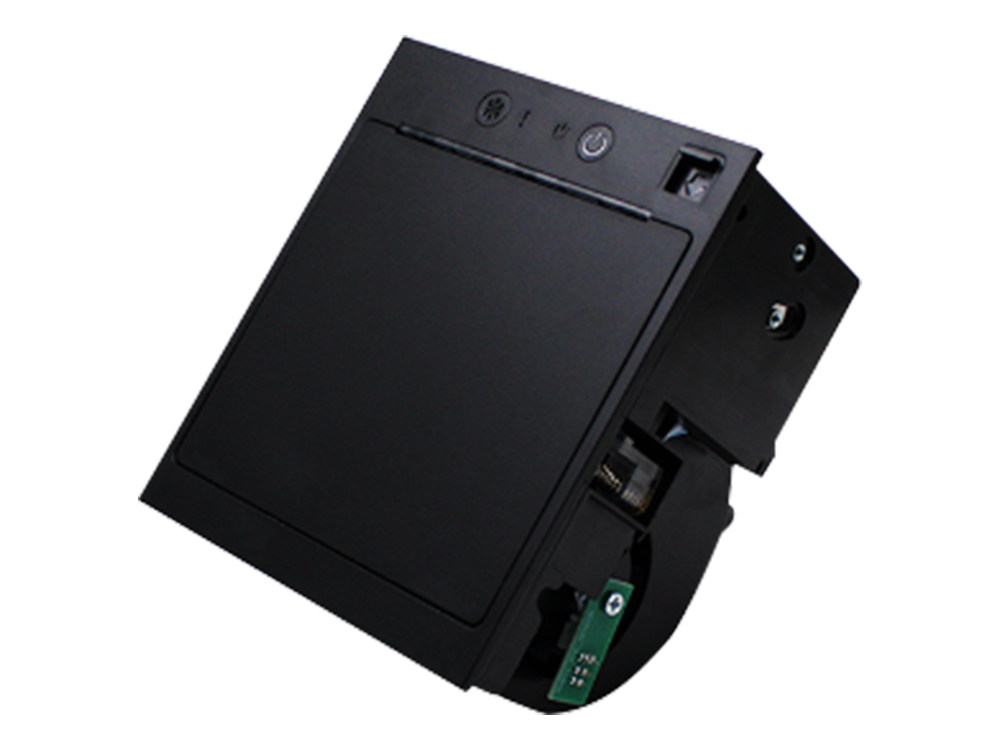

: 80MM embedded thermal printer I automatic paper cutting

It has a simple appearance and a simple design that makes it easy for you to operate and change paper quickly, saving you every minute and second. It does not require carbon tape, color tape, or ink, and uses thermal technology printing. It has rich interfaces and RS232+USB+parallel ports, making it more convenient for you to use.

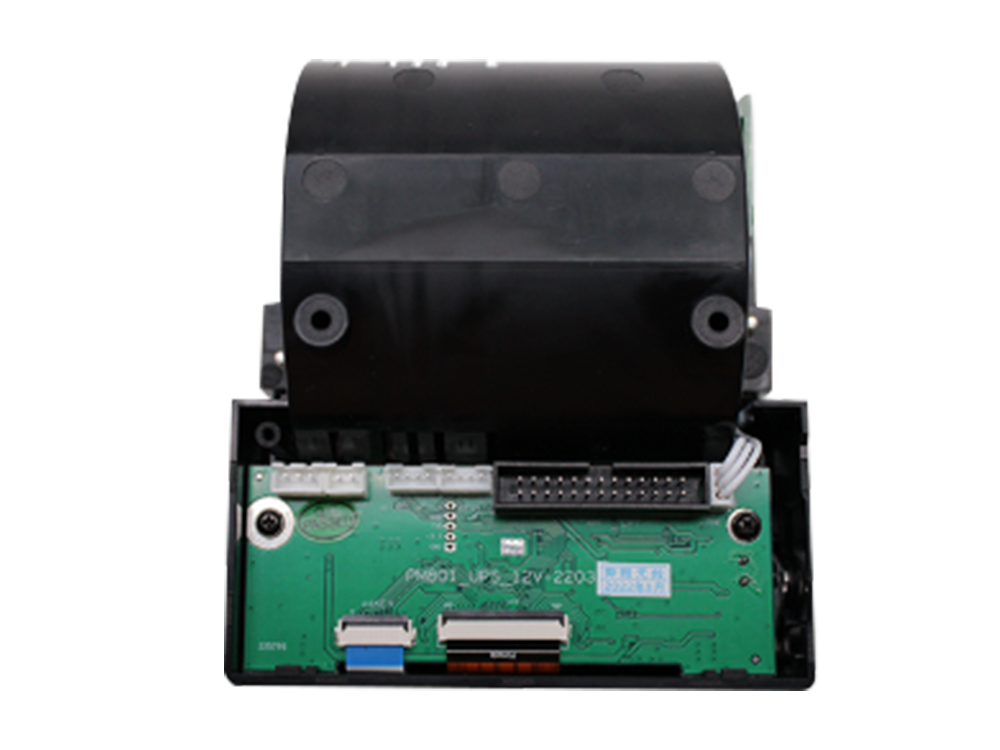

: 80MM embedded thermal printer I automatic paper cutting

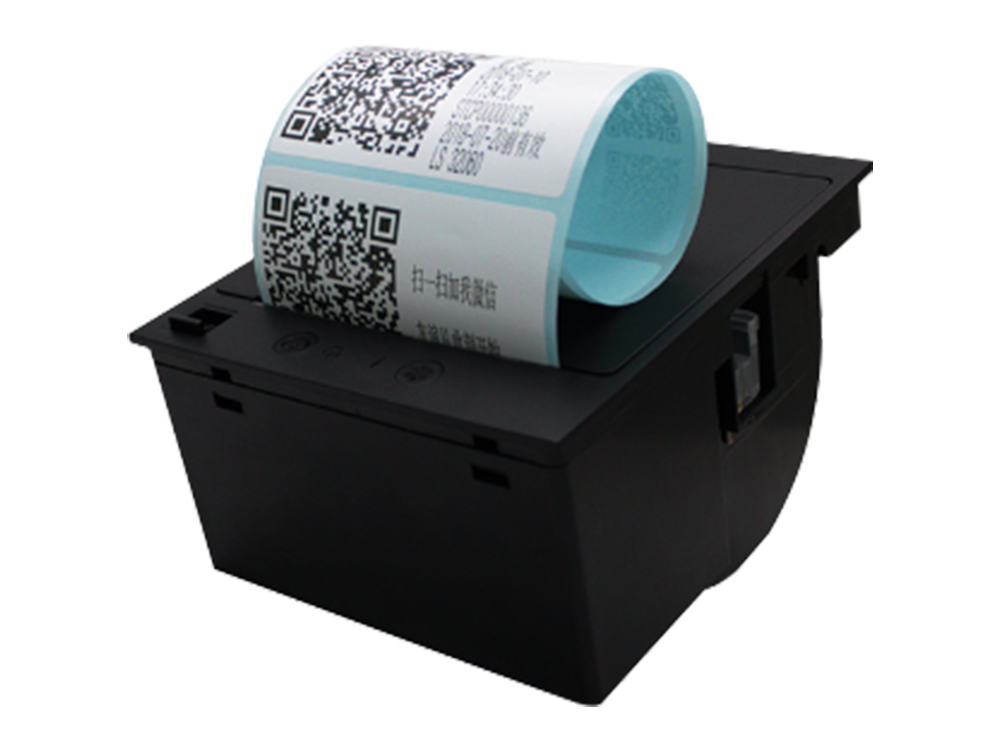

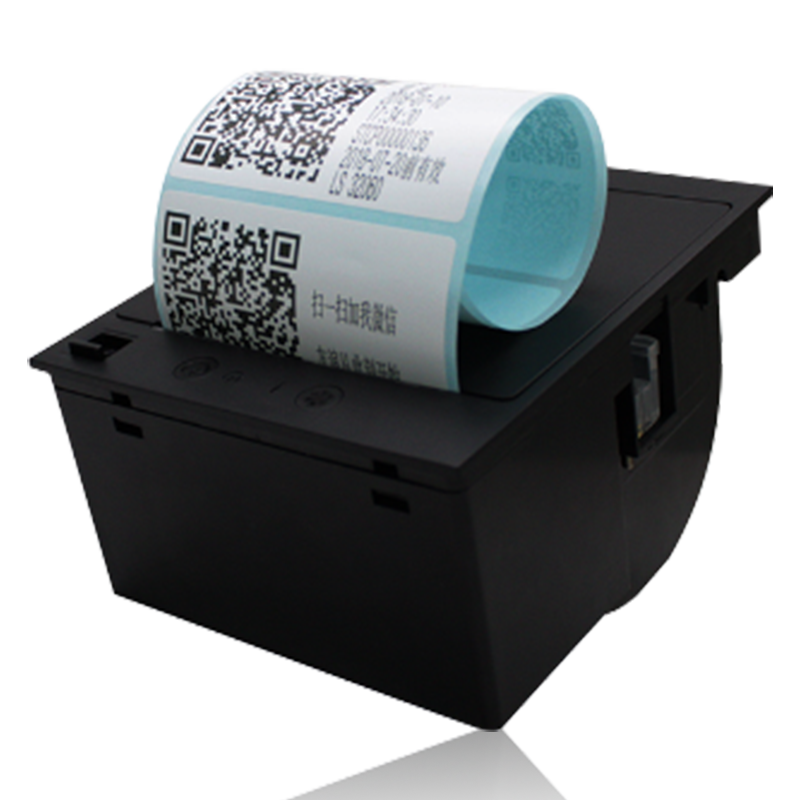

It has a dual mode of tag/receipt, which can meet various needs in your daily life. It supports status reply function, automatic paper cutting (half cut/full cut) 80mm large paper bin, adjustable width of 43-80mm tags, and also supports control printing on Linux, Android, PLC, Raspberry Pi, Windows, microcontroller, and other devices.

Parameter

Basic information
Product name	GY-TC3612
Printing type	Ticket/tag switchable mode
Specification parameters	12V2.5A power supply
Communication interface	RS232+USB interface
Appearance dimensions	132 * 114.8 * 86.4MM
Usage scenario	Unattended self-service devices
Printing speed	150MM/S
Product Usage	Thermal label/ticket printing in various fields
Product features	Support status reply function, automatic paper cutting (half cut/full cut), 80MM large paper bin, adjustable width of 43-80MM labels, and easy to pack paper structure design
Secondary development	Supports controlling printing on Linux, Android, PLC, Raspberry Pi, Windows, microcontrollers, and more

Data Download

Document name

Update Time：2022-11-28

File Size:9 KB

File Format:doc

Download

Common Problem

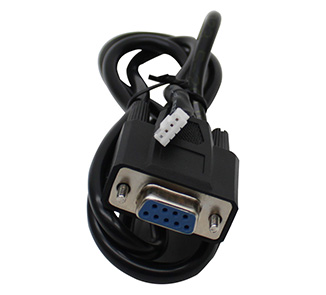

How to connect the serial port of the printer?

All of our integrated printers (products that need to be integrated into the device) have a232serial port or TTL serial port with 4 pins, defined as TX, RX, GND, and DTR. Currentlytheactual amount of data printed is not large, usually using 3 lines, which are TX, RX. andGND
After using the printer for a period of time, it may not print clearly. ls there no ink left?

No, this type of thermosensitive printer does not require consumables such as ink, toner.orribbons. The color development principle relies on the printer's movement heating to makethethermosensitive paper, and the color development agent on top of it produces the colorthatwe see as a small ticket. The reason for unclear printing of thermal printers is mostlyrelatedto the thermal color agent coating of thermal paper. However, cheap thermal paper onthemarket has poor thermal color agent, resulting in blurry printing and short retention time
What is the situation of unclear printing effect?

1. First, troubleshoot the issue with the printer itself. Open the paper compartment coverandcheck for dirt on the rollers and print head. lf not, troubleshoot the issue. lf so, gently cleanitup! 2. Check if there is moisture on the paper roll. lf not, it can also be ruled out! 3. it's justthatthe current of the power supply is not enough, and there is a possibility of virtual
Do l need to install a driver when printing via USB on a computer?

lf necessary, you can control printing through the USB on the computer side. You need toinstall a printer driver, and then call the original driver to print when the software controls, justlike the principle of calling the local laser printer or inkjet printer after the WORD is edited!Using driver printing, there is no need to worry about the printer's instruction manual, but
